968

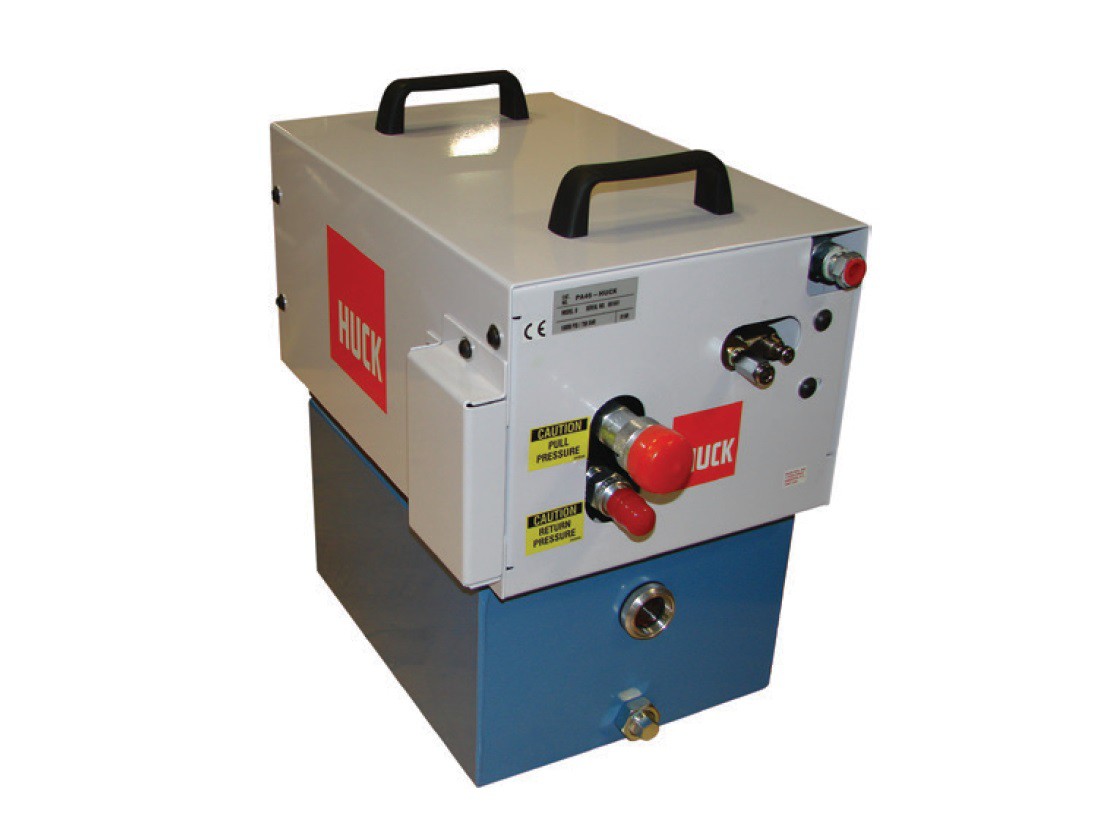

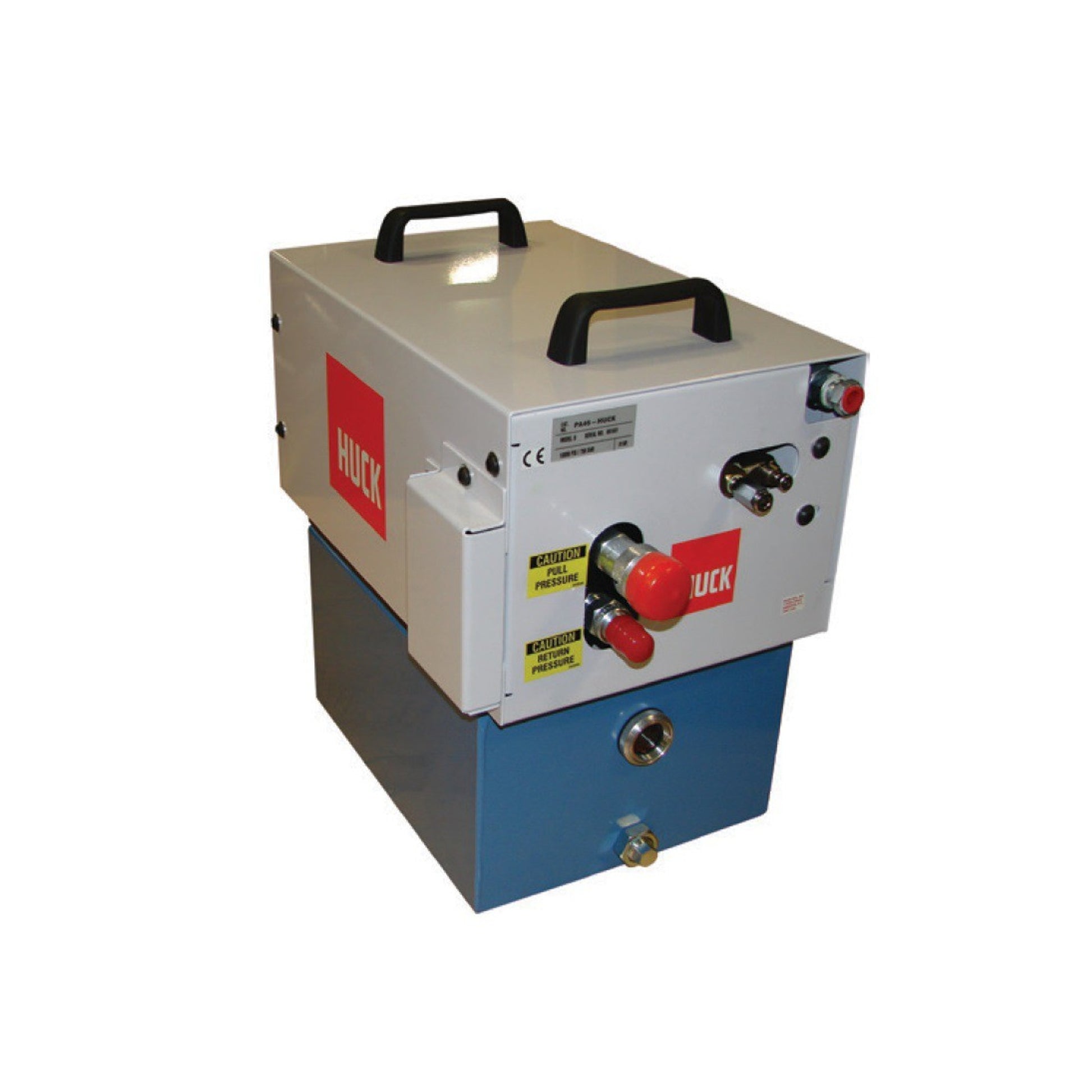

Model 968 and 968D ("D" designates dolly assembly included)
Portable air-powered, air-actuated single 70 cubic in/min hydraulic
power source. Designed to operate hydraulic installation
tools identified by a prefix A in the model number (eg: A206-375).
The 968 delivers 8,400 psi working pressure with hydraulic fluid
directional flow remotely controlled by a trigger in the installation
tool. A 2-stage, gear-piston pump operates the rapid pull-piston
movement. The unit features a built-in regulator for adjusting
hydraulic pressures. Quick air and hydraulic disconnect couplings
are included with each system.

System: Single open center circuit with 8,400 psi max 70 cu in/min
at 5,000 psi

Pump: 2 Stage, gear-piston Type

Oil Control: Four-way air piloted directional valve

Reservoir Capacity: 2.5 gal (9.5 liters)

Power Source: Compressed air 90-100 psi

Air Consumption: 50 cfm (.024 m3/s)

Dimensions: 10.45"(26.5cm) length, 16.33"(41.5cm) wide,
15.68"(39.8cm) high

Weight: Dry 75lbs (34kg), operational 93lbs (42kg)
Hydraulic Fluid: Automatic transmission fluid—Dexron II® or
equivalent

Note: The 968 is a low-to-medium volume production unit for use
with all tools prefixed ‘A’ specifying air trigger option

Note: Optional Dolly assembly available P/N 129703
